PDF Icon   DX miCro Data Sheet

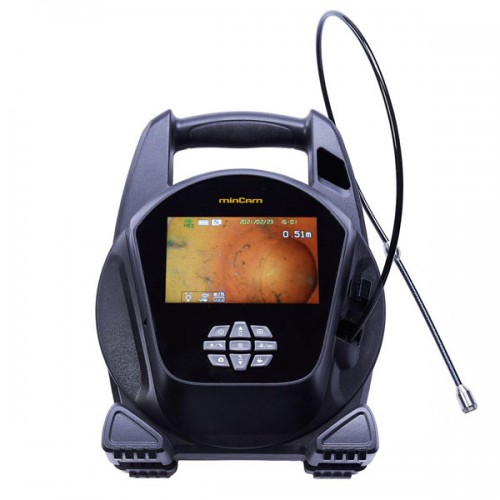

DX miCro聽Drain Camera System

'Small, Compact and usable almost everywhere'

New on the market in the UK the聽DX miCro is ideal for small drain/pipe inspection (15mm to 80mm diameter) with plenty of features in a small portable unit.

The聽DX miCro camera is designed to reach even the most difficult-to-reach places, even the tightest spaces and saving costly disassembles.

Tubes, cavities, welding seams, turbines, hollow profiles and castings. The 13mm diameter Stainless Steel camera head inspects these easily. At the same time, the cameras
are so robust that they can easily withstand the harsh field conditions. In this way you locate all surface damages, cracks, sediments and deteriorations with minimal effort.
The 5mm push rod and spring enables the system to navigate most buildings internal pipework and with a locatable multifrequency Sonde and meter counter the camera head location can be pinpointed easily to ensure problems聽can be resolved quickly.

Passes 90掳 bends in 25mm pipe.

Unit is controlled with the function keys on the front panel which include adjustable lighting,聽

The DX miCro is powered by Internal Battery and gives approximately 3 working hours use before charging required and works direct from the mains.

Video & still images are captured to an SD card and can be connected direct to a laptop via USB.

Optional Wi-Fi Module available to work in conjunction with the Dart Viewer App.

SPECIFICATION

Cable Length:聽 聽 聽 聽 聽 聽 聽 聽 聽15m

Cable diameter:聽 聽 聽 聽 聽 聽 聽 5mm

Camera head diameter: 13mm

Field of View聽 聽 聽 聽 聽 聽 聽 聽 聽 聽84掳

Pipe Diameter range:聽 聽 15-80mm

Monitor:聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 5" TFT Colour

Meter Counter:聽 聽 聽 聽 聽 聽 聽 聽Ft/Mtr

Location Sonde:聽 聽 聽 聽 聽 聽 聽33kHz/512Hz/640Hz (switchable)

System Weight:聽 聽 聽 聽 聽 聽 聽 3.5kgs

Waterproof聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 聽 Up to 1bar

Packing Dimensions

54 x 32 x 14cm; weight 4.2kgs聽 聽
